electric pellet mill
Electric pellet mill is the most widespread type pellet mill for small scale production for the popularization of electricity and high productivity. With the development of green energy market, pellets are becoming more and more favored by people. As it is of low investment and high return, making pellets with an electric pellet machine is attractive and available for common people.
Watch Video to Get How to Operate Electric Pellet Mill
Electric pelletizing machine developed by GEMCO is a widely popular product in the world. This machine adopts the flat die design. It mainly consists of feeder, pelletizing room, gear box, and the electric motor. When you want to pelletize, you just need to put prepared materials into the feed vertically, then this machine will do following steps automatically. From the material of components to the length and diameter of dies, each part of this machine has been examined to make sure the excellent quality and performance of whole equipment. The compact and scientific structure enables you to set it freely or pelletize at anywhere.

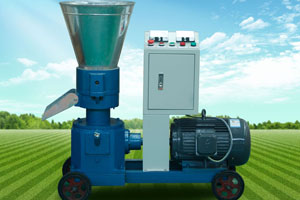

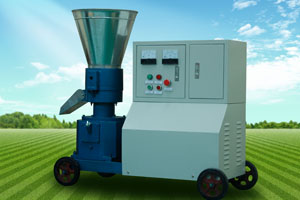

ZLSP-C Type (Covered Motor) | ZLSP-B Type (Motor) |
Technical Parameter of Electric Pellet Mill
Model | Power | Capacity | Weight(NW/GW | Packing Size |
---|---|---|---|---|
ZLSP200B | 7.5KW (3phase) | 80-120 kg/h | 215/245kg | 950*450*1050mm |
170-270 lbs/h | 475/540lbs | 37*18*41 inch | ||
ZLSP300B | 22KW (3phase) | 250-350 kg/h | 540/575kg | 1350*750*1400mm |
550-770 lbs/h | 1190/1268lbs | 53*30*55 inch | ||
ZLSP400B | 30KW (3phase) | 350-450 kg/h | 770/810kg | 1400*800*1450mm |
770-990 lbs/h | 1698/1785lbs | 55*31*57 inch | ||
ZLSP200C | 7.5KW (3phase) | 80-120 kg/h | 210/230kg | 1050*550*830mm |
180-265 lbs/h | 460/510lbs | 42*22*33 inch | ||
ZLSP260C | 15KW (3phase) | 160-250 kg/h | 340/370kg | 1240*580*1000mm |
350-550 lbs/h | 750/815lbs | 49*23*39 inch | ||
ZLSP300C | 22KW (3phase) | 250-400 kg/h | 425/465kg | 1300*620*1100mm |
550-880 lbs/h | 940/1025lbs | 51*24*43 inch |

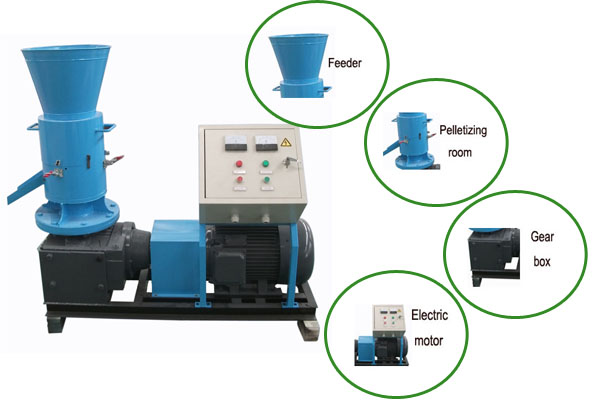

Introduce Detail Parts of Electric Pellet Mill

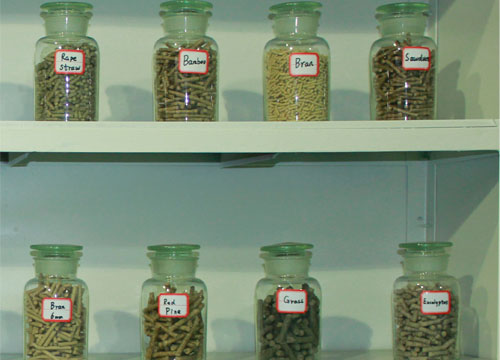

Scope of Raw Material
Main Features
- ISO9001 and CE certified;
- Continuous and steady running;
- Strong durability with alloy steel made components;
- Removal tools and professional lever action grease gun allocated enable the dismounting and maintenance easy;
- Standardized electric chassis enhances the safety and avoid operator stretching the hand into inner parts.
